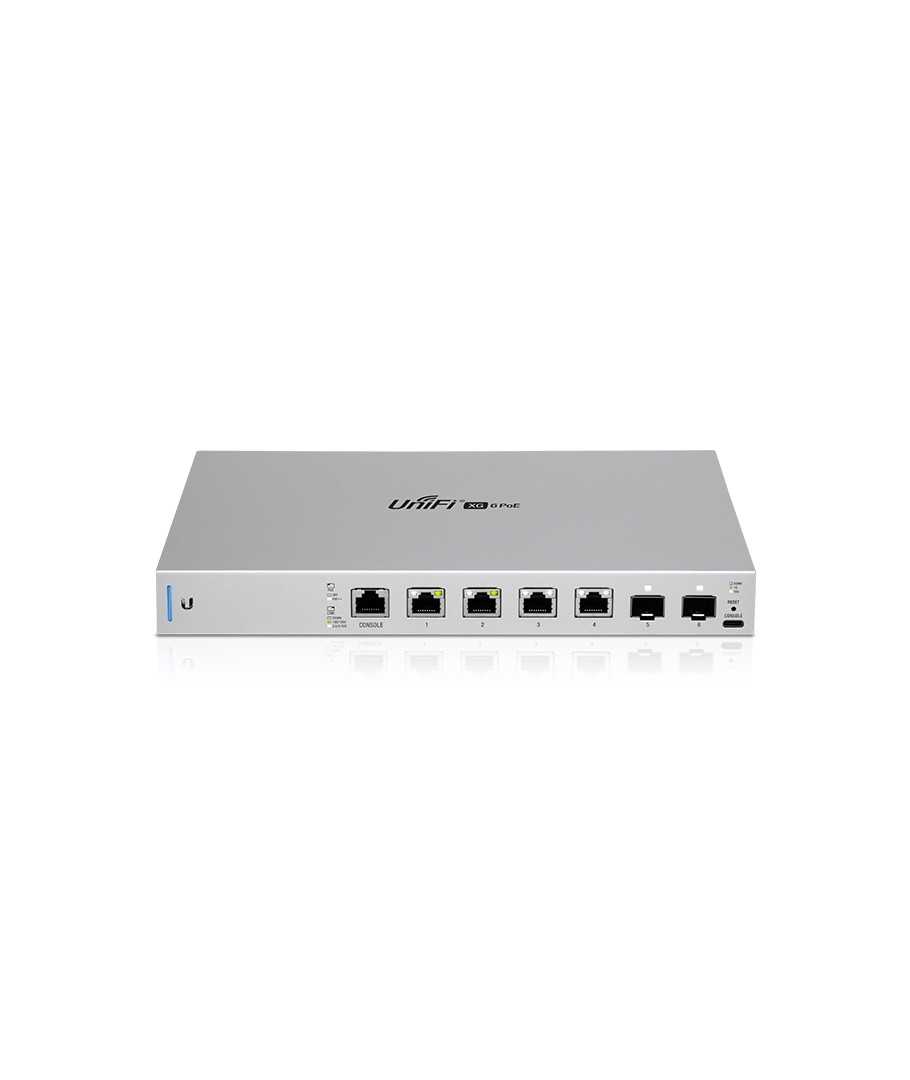

UBIQUITI US-XG-6POE 10Gigabit 6-Port 802.3bt UniFi Switch
UBIQUITI US-XG-6POE (14931)
US-XG-6POE
- 6-Port 10G-Switch
- 802.3bt PoE++
- 4x 10G RJ45-Ports
- 2x SFP+ Ports
US-XG-6POE
El switch UniFi ofrece un rendimiento robusto en sus 6 puertos de conmutación independientes. Ofrece 4x puertos 10 Gigabit Ethernet con PoE (802.3bt PoE ++) y 2x slots SFP+ 10G para conectividad óptica.
| US-XG-6POE | |
|---|---|
| Dimensions | 165 x 268.1 x 31.8 mm (6.50 x 10.56 x 1.25") |
| Weight | 1.3 kg (2.87 lb) |
| Interfaces | Networking (4) 100/1000 Mbps and 2.5/5/10G RJ45 Ports (2) 1/10G SFP+ Ethernet Ports Management Ethernet In-Band (1) RJ45 Serial Port Out-of-Band (1) USB Type C Port Out-of-Band |
| Power Method | 54VDC, 3.88A Power Adapter (Included) or DC Input with Terminal Block |
| Power Supply | External AC/DC Adapter (Included) or DC Power Source |
| Supported Voltage Range | 44 to 57VDC |
| Max. Power Consumption (Excluding PoE Output) | 40W |
| LEDs System RJ45 Data Ports SFP+ Data Ports |
Status PoE; Speed/Link/Activity Link/Activity |
| ESD/EMP Protection | Air: ± 18 kV, Contact: ± 12 kV |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | -5 to 45° C (23 to 113° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| POE | |
| PoE Interfaces | PoE++ IEEE 802.3bt (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-) |
| Max. 802.3bt Wattage per Port by PSE | 60W |
| Voltage Range 802.3af Mode | 44-57V |
| Voltage Range 802.3at/bt Mode | 50-57 |
- Nº de Puertos
- [ 04 - 07 ]
- Velocidad Conexión Puerto Principal
- 10 Gigabit
- PoE
- PoE++ (802.3bt) / Tipo 3 - 60W
- Potencia Total PoE Disponible
- [ 121 - 240 ] W
- Puertos Uplink / SFP / RJ45
- 10Gb SFP+
